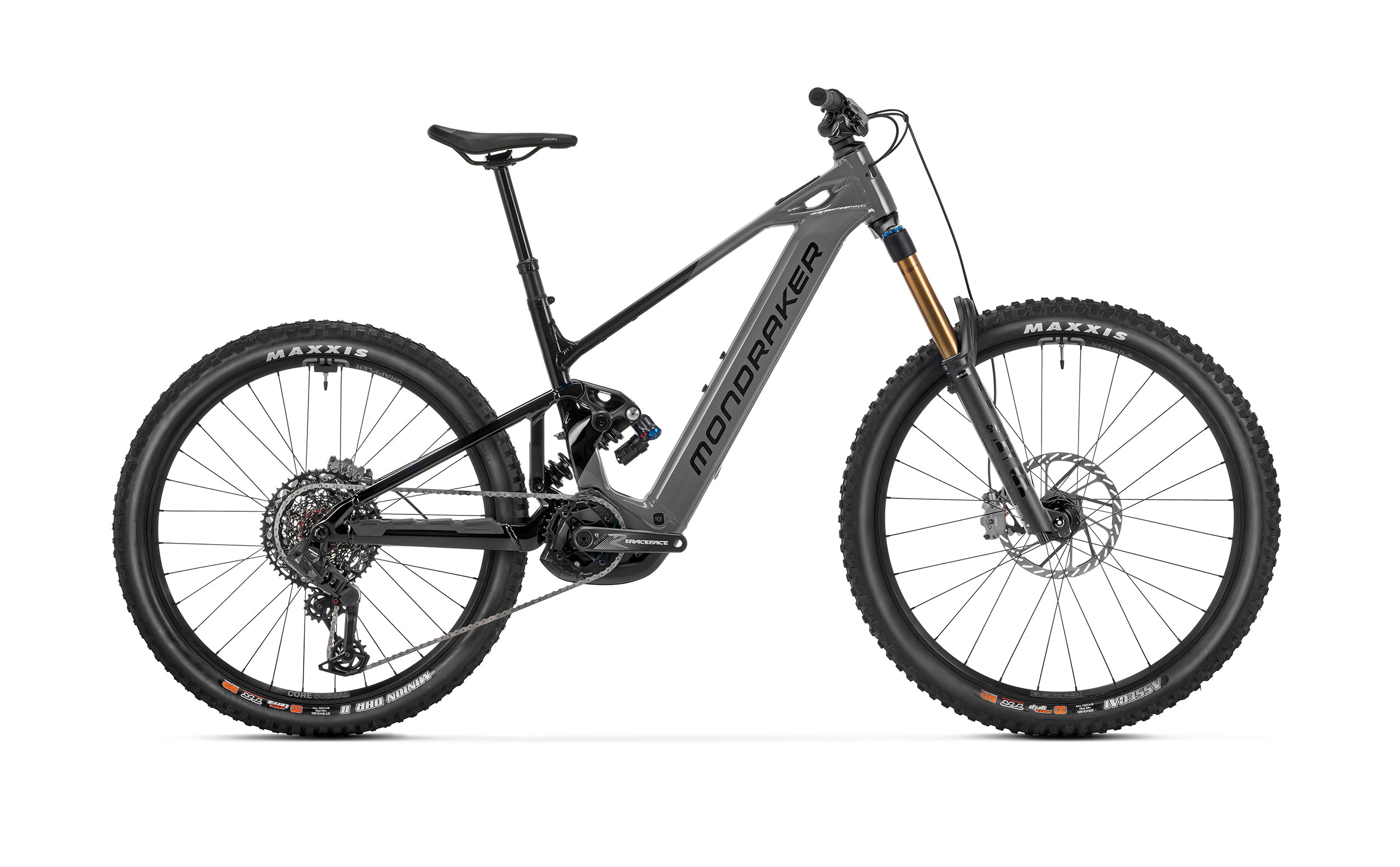

26 MONDRAKER Level RR | Nimbus Grey

LEVEL RR: SRAM AXS & KASHIMA FOR THOSE WHO WANT MORE

For riders looking for something a little more high-end, the Level RR delivers. It keeps the same updated Bosch CX Gen 5 motor and 800Wh removable battery, but steps things up with more premium components:

• Fox 38 Kashima Factory Grip X2 fork
• SRAM Maven Bronze brakes
• SRAM S1000 Eagle AXS T-Type drivetrain (10-52T, 34T chainring)
• Maxxis Assegai 29"x2.6" WT (front) / Minion DHR II 27.5"x2.6" WT (rear)

Specifications

• Frame: Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers

• Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
  Rear Shock: Fox DHX2 Performance Elite, 205x65mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

• Shock Settings: CL50 compression, RL40 rebound, Rezi LML, Bleed 1,1, B60. Spring rate: S size 350 lbs, M size 400 lbs, ML size 450 lbs, L size 500 lbs, XL size 500 lbs

• Fork: Fox 38 29 Float GRIPX2 Factory Kashima, 180mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

• Headset: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

• Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

• Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise

• Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

• Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing

  • S size: 140-115mm (388-235mm)

  • M size: 160-135mm (428-255mm)

  • ML size: 180-155mm (468-275mm)

  • L size: 210-185mm (528-305mm)

  • XL size: 210-185mm (528-305mm)

• Saddle: FIZIK Terra Aidon X5 145mm

• Front Brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

• Rear Brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

• Brake Lever: Sram Maven Bronze, SwingLink and lever pivot bushings, tools-free reach adjust

• Rims: e*thirteen Grappler Core, Hookless 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28F spokes, 29" front, 27.5" rear

• Spokes: e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

• Front Hub: ethirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

• Rear Hub: ethirteen Boost 12x148mm, triple-sealed, fully machined aluminum with 6-degree engagement, IS 6 bolts, HG Freehub

• Front Tyre: Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

• Rear Tyre: Maxxis Minion DHR II 27.5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

• Crankset: Race Face Aeffect ebike, All sizes: 160mm

• Rings: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

• Chain: Sram GX Eagle T-Type, 12s, Powerlock

• Rear Derailleur: Sram S1000 Eagle AXS T-Type, 12s

• Shift Levers: Sram Eagle AXS Pod MMX, 12s

• Cassette: Sram XS-1270, 10-52T, T-Type, 12s

• Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

• Battery: Bosch Powertube 800Wh

• Display: Kiox 400 / Bosch Mini Remote
