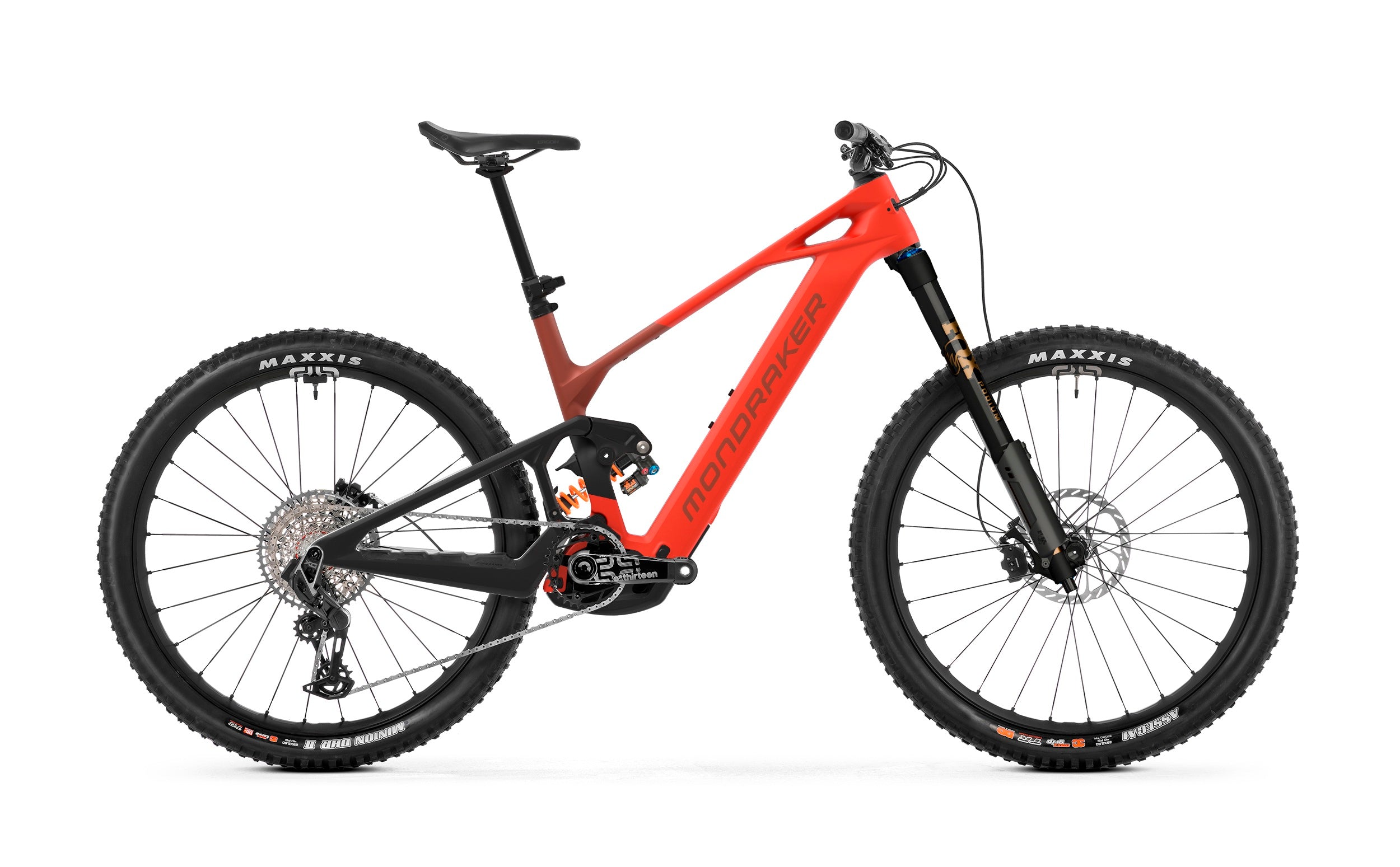

26 MONDRAKER Crafty Carbon XR | Flame Red

NEW CRAFTY CARBON

The ultimate enduro bike in our full power mountain bike category, it comes with 29” wheels and 160/150mm of travel. The new Crafty Carbon range is available in 5 different builds, all with a carbon fibre frame guaranteeing versatility and endurance on the harshest of terrains. Crafty Carbon also incorporates the very latest edition of the Zero Suspension System and a flip chip on the lower shock mount as well as two different swingarm lengths depending on frame size: 455mm (S, M, ML) and 465mm (L and XL).

PERFECT COMBO: CRAFTY CARBON + NEW BOSCH CX

Our reference e-Bike would hardly be complete without the latest evolution of the Bosch CX motor. 100g lighter and smaller thanks to a more refined design architecture, the motor offers the same 85Nm of torque and 600W max power as before but with far better power delivery and control compared to previous models. Quieter overall when pedalling, mechanical rattles when riding downhill have also been eliminated so that you can ride faster and more.

MORE SIZES: MORE ADJUSTABLE

We’ve even optimized the size ranges. The new Crafty Carbon comes with optimised kinematics on the Zero Suspension System as well as the Forward Geometry, and with the addition of an intermediate ML size there are now 5 sizes to choose from. With this additional size, we’ve made the whole range more adaptable to an even wider range of body types so that there’s always a bike that’s right for you, a bike that offers a near-perfect fit. We’ve also optimised the swingarm length depending on frame size to keep things proportional and maintain that Mondraker ‘feeling’ throughout, regardless of frame size.

Specifications

• Frame: Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
• Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
• Rear shock: Fox DHX2 Factory Kashima, 185x55mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
• Shock settings: CL60 compression, Bleed 0,9, RS60 rebound, Rezi B60, LML, VVCM Spring rate: S size 400 lbs, M size 450 lbs, ML size 500 lbs, L size 550 lbs, XL size 600 lbs
• Fork: Fox Podium 29 Float GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
• Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
• Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
• Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
• Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
• Seatpost: RockShox Reverb Stealth AXS, diameter 31.6mm
  • S size: 398.2x125mm
  • M size: 448.2x150mm
  • ML size: 498.2x175mm
  • L size: 548.2x200mm
  • XL size: 548.2x200mm
• Saddle: Ergon SM-10
• Front brake: Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Rear brake: Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Brake lever: Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust

• Rims: e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
• Spokes: e*thirteen Sapim D-light / Brass
• Front hub: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
• Rear hub: e*thirteen Boost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
• Front tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
• Rear tyre: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

• Crankset: E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
• Rings: Sram XX Eagle 34T T-Type, direct mount, steel, CL55
• Chain: Sram GX Eagle T-Type, 12s, Powerlock
• Rear derailleur: Sram X0 Eagle AXS, T-Type, 12s
• Shift levers: Sram Eagle AXS Pod MMX, 12s
• Casette: Sram XS-1275, 10-52T, T-Type, 12s
• Weight: 24,4 kg
• Display: Kiox 400C / Bosch Mini Remote
• Motor: Bosch Performance Line CX R (25Km/h) SMART SYSTEM (BDU386Y)
• Battery: Bosch Powertube 800Wh
